OPH-5000i Standard app

This section explains the procedure for sending and receiving data collected using the Standard app to the PC using Bluetooth.

The steps to send and receive data to the PC using Bluetooth are as follows.
　*This procedure is explained using Windows 10.

Bluetooth settings

(Operation method)

1. Check your PC's built-in Bluetooth.
   You can check whether the Bluetooth function is available in "Device Manager".
   If there is an item , it has Bluetooth function.

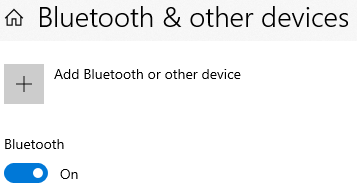

2. Turn on Bluetooth on your PC.
   Tap "Bluetooth" from [Bluetooth & other devices] to turn it on/off.

   Operation example:



(Caution)

When using our OPA-3201-USBHCI:


• For PCs with built-in Bluetooth
  Disable the built-in Bluetooth adapter if it conflicts with your existing built-in Bluetooth adapter.
• If a third-party driver is recognized unintentionally

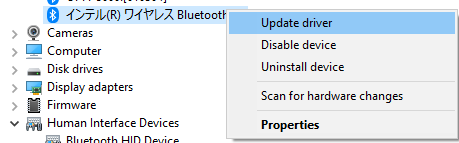

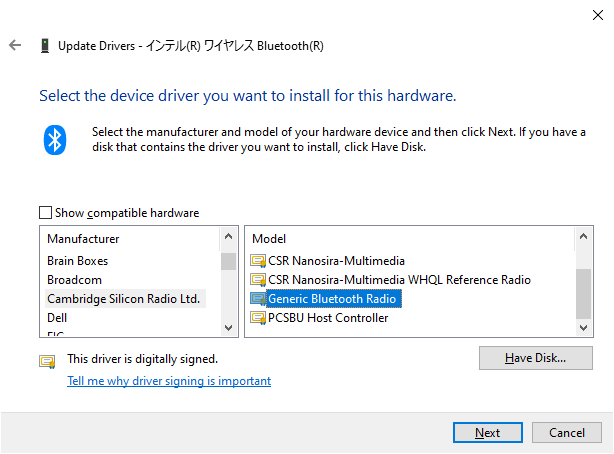

  Please change from "Update driver software" to "Generic Bluetooth Radio" (display may differ depending on your environment). If more than one is displayed, uncheck "Show compatible hardware", Select "Generic Bluetooth Radio" from the manufacturer "Cambridge Silicon Radio Ltd.".

Operation example:

Pairing

(Operation method)

1. Standard app ⇨ Main menu ⇨ F1 key & #x21E8; Device settings ⇨ Bluetooth settings

   Operation example:

   ⇨ ⇨
2. Standard app editor ⇨ Bluetooth ⇨ Pairing

   Operation example:


3. Press the SCAN key to scan the QR code.

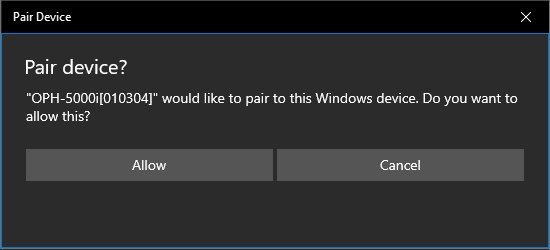

4. When communication starts, the PC will request confirmation of device connection.
   Click Allow and the connection will be successful.

   Operation example (PC side):



   Operation example (OPH-5000i side):

   ⇨

(Caution)

If your PC does not respond when you try to connect via Bluetooth:
If other Bluetooth devices are working fine, but you cannot connect with the OPH-5000i or the PC does not respond, please check the following items.

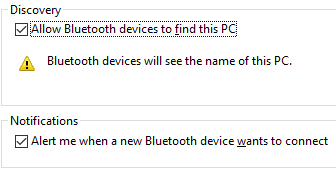

1. Check "Allow Bluetooth devices to connect to this computer" in Bluetooth settings


   Operation example


2. Check the pairing status
   If you have used it as a HID keyboard with a user app, etc., select "Delete device" to delete the pairing information.

   Operation example

   If you need to delete the device		Properly paired

3. Check if the Bluetooth adapter is recognized correctly
   Multiple Bluetooth adapters cannot be operated at once. Please confirm that "△" is not displayed in the device name in Device Manager.

   Operation example



OseComm32 settings

Use the OseComm32 Settings Utility to configure the OseComm32 Utility.
Before making these settings, you must perform pairing at least once and create a Bluetooth incoming port on your PC.

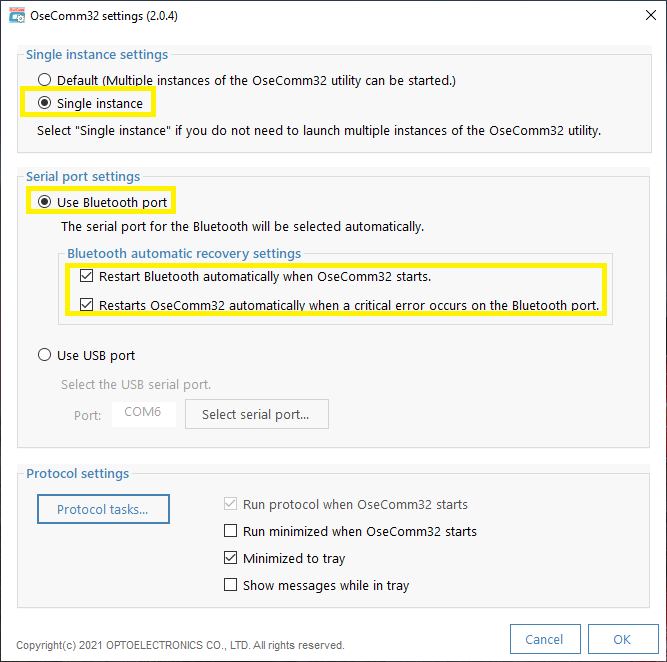

1. Select "OseComm32 settings" in the "Opticon" folder in the start menu to start the OseComm32 settings utility and open the settings screen.



   Select
   • Single Instance.

   • Select Use Bluetooth serial port.
   • Check [Automatically restart Bluetooth when OseComm32 starts].
   • Check Automatically restart OseComm32 when a fatal error occurs on the Bluetooth port.

2. Next, press the [Protocol Task...] button to edit the protocol task.

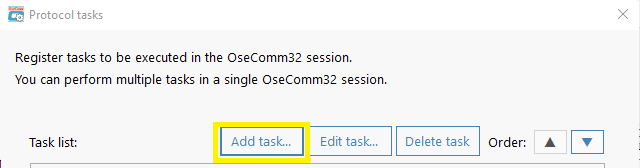

   On the protocol task screen, select Add task... and then Receive file. "File Reception" is a task that saves files on the OPH-5000i to the PC.

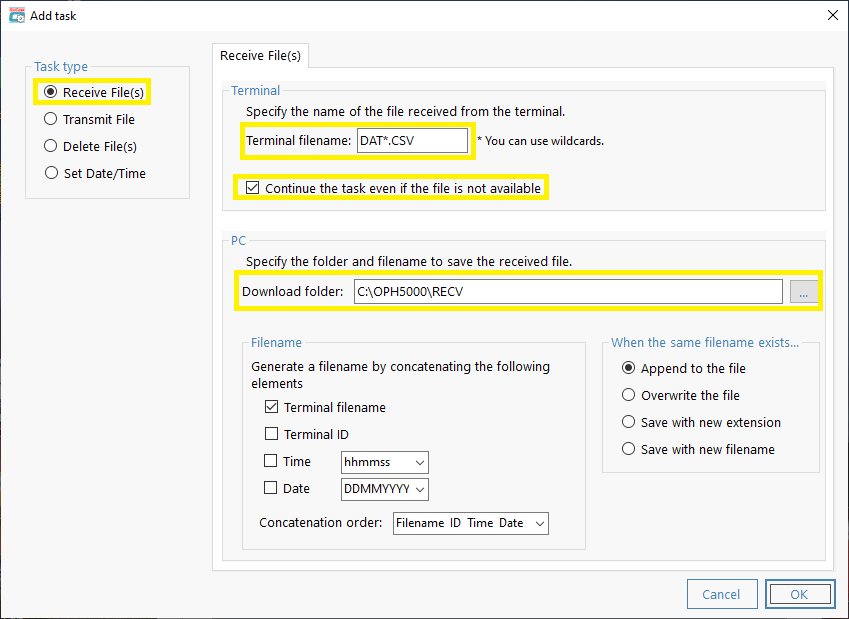

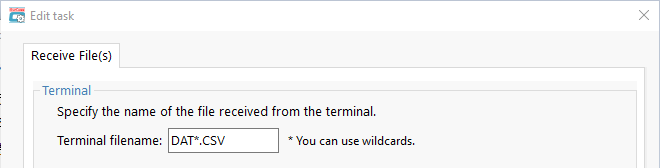

   Configure detailed settings for the file reception task.

   • Specify [terminal file name:]. (e.g. DAT*.CSV)
   • Check Continue task when file not found.
   • Click [...] in [Incoming Folder:] to select the incoming folder.

   Select other options according to your environment.

   For more information about file receiving tasks, see Please refer to "OseComm32 Settings Utility: File Reception".
   When the settings are complete, click "OK".

3. On the protocol task screen, select [Add task...], [Delete file], specify the same file name as the file receive task, and click Press the OK button. "File deletion" is a task to delete files on OPH-5000i.

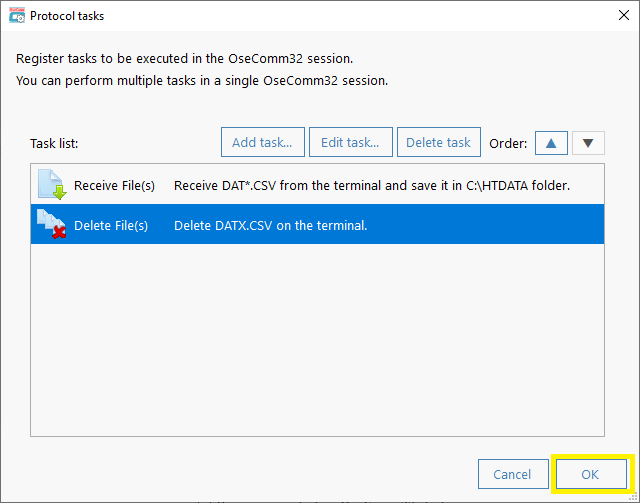

4. The task you set will be displayed in the task list. Click OK.

5. Click OK in the OseComm32 settings to save the settings and exit.

File sending/receiving

(Operation method)

1. Select “OseComm32” in the “Opticon” folder in the start menu. The OseComm32 utility will start and the screen shown below will open.
   Automatically runs the protocol when you start a configured OseComm32 utility.

   Operation example (PC side):


2. Collect data using the collection task and select "File Send/Receive" from the main menu of OPH-5000i.
   Press the "Q1 key" to start sending and receiving files.

   Operation example (OPH-5000i side):

   ⇨ ⇨

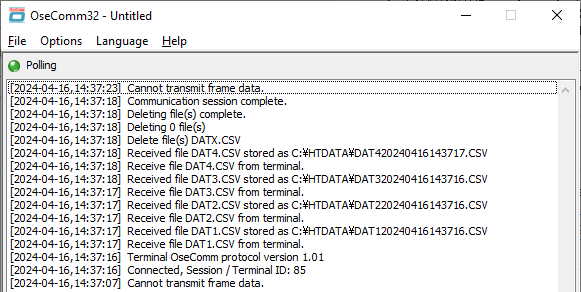

3. Display the file information received by OseComm32.

   Operation example (PC side):
