*All Scanner mode settings, such as Bluetooth connection settings and barcode reading settings, are independent from the Standard app settings. When using Scanner mode, you need to configure settings in Scanner mode separately from the Standard app settings.
(Startup method)
Standard app ⇨ Main menu ⇨ Scanner mode*If Scanner mode is not in the main menu, you can add Scanner mode to the menu using the standard app editor.
Communication method
There are mainly two types of communication methods in Scanner mode: Please use either communication method.
- Bluetooth HID
Bluetooth HID is a communication method that connects to a PC, etc. via Bluetooth and transmits the contents of a barcode like keyboard input.
- Bluetooth SPP
Bluetooth SPP is a communication method that connects to a PC, etc. via Bluetooth and sends the barcode contents to the serial port.
Barcode reading settings
If you want to change the barcode reading settings of Scanner mode, read the menu QR code created with UniversalConfig.
Settings will be saved when reading the menu QR code. The same settings will be used when using Scanner mode again after the power is turned off.
*The scanning settings of Scanner mode are different from those of the Standard app. Mutual reading settings do not interfere.Barcode reading settings registration/reading function
Up to 7 barcode reading settings can be registered with names and read out when needed.
Registering barcode reading settings
- Registration via F2 settings menu
On the Scanner mode screen, set in the following order: F2 key ⇒ Register reading settings ⇒ 1 to 7 keys ⇒ Read UniversalConfig QR code ⇒ ENT key ⇒ Enter name ⇒ ENT key.
⇨
⇨
⇨
⇨
⇨
- Registration using standard app editor

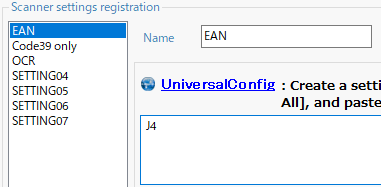

The standard app editor allows you to register barcode reading settings in advance.
Call barcode reading settings
On the Scanner mode screen, you can call up the registered barcode reading settings by pressing the F3 key ⇒ 1 to 7 keys.
Barcode transmission via Bluetooth HID
For first time use
When using Scanner mode for the first time, you need to perform Bluetooth pairing.*If you want to use a PC that sends and receives files via Bluetooth using the Standard app with Bluetooth HID in Scanner mode, you need to select OPH-5000i from the list of other devices in PC settings and then "Delete device". there is.
*If you use the standard app's file sending/receiving and Scanner mode's Bluetooth HID sending on the same PC, you will need to manually create a Bluetooth incoming port for the standard app's file sending/receiving.
- Set the interface to HID on OPH-5000i
*In the initial state, HID is set on the Scanner mode interface, so this operation is not necessary.
Set in the following order: F2 key ⇒ "Communication settings" ⇒ "Interface" ⇒ "HID" ⇒ ENT key.
⇨
⇨
⇨
⇨
After setting, you will be returned to the communication setting screen, so press the CLR key twice to return to the Scanner mode screen.
⇨
⇨
- Start Bluetooth pairing
Press and hold the F1 key for more than 3 seconds, the blue LED will flash and Bluetooth pairing will begin.
- PC side operations for Bluetooth pairing

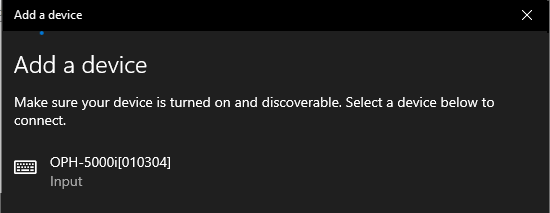

Select "Add Bluetooth or other device" in PC Settings ⇒ Devices.
Move the OPH-5000i and PC closer together and select the keyboard device displayed as "OPH-5000i[######]". (# is the serial number)
- Bluetooth pairing complete
When Bluetooth pairing is completed and Bluetooth HID connection is successful, OPH-5000i will make a connection success sound and turn off the blue LED.
- Preparing input on the PC side
Start Notepad or similar program on your PC, disable the IME's Japanese conversion, and use alphabet input.
- Send barcode
Press the SCAN key to read the barcode, and the contents of the barcode will be displayed in Notepad.
- Bluetooth disconnect
Press and hold the SCAN key for more than 3 seconds to disconnect the Bluetooth connection.
*The power will turn off if there is no operation for 120 seconds. The time until the power turns off can be changed using power management in the Scanner mode settings (F2 key).
*The default time for automatically disconnecting Bluetooth in Scanner mode is 180 seconds. Bluetooth will be disconnected in the following cases.- When 180 seconds have elapsed since the key was pressed while power is being supplied
- When 181 seconds or more is set for the power off time due to no operation in power management, and 180 seconds have passed since the key was pressed
- When "Resume" is set for power management and more than 180 seconds have elapsed when resuming.
How to use from the second time onwards (if Bluetooth pairing has been completed)
*If you initialize the settings of OPH-5000i, you will need to pair it again. After initializing the settings, if you want to pair with the same PC again, you need to select OPH-5000i from the list of other devices in PC Settings > Devices and "Delete Device."- Start Bluetooth connection
Method 1: Long press the SCAN key to start Bluetooth connection, the blue LED will flash.
Method 2: After reading the barcode, it will start the Bluetooth connection and the blue LED will flash.
*If the data collection function is enabled, the connection will not start even if the barcode is read. - Bluetooth connection completed
When the Bluetooth connection is successful, OPH-5000i will make a connection success sound and turn off the blue LED.
- Preparing input on the PC side
Start Notepad or similar program on your PC, disable the IME's Japanese conversion, and use alphabet input.
- Send barcode
Press the SCAN key to read the barcode, and the contents of the barcode will be displayed in Notepad.
- Bluetooth disconnection
Press and hold the SCAN key for more than 3 seconds to disconnect the Bluetooth connection.
*The power will turn off if there is no operation for 120 seconds. The time until the power turns off can be changed using power management in the Scanner mode settings (F2 key).
*The default time for automatically disconnecting Bluetooth in Scanner mode is 180 seconds. Bluetooth will be disconnected in the following cases.
- When 180 seconds have elapsed since the key was pressed while power is being supplied
- When 181 seconds or more is set for the power off time due to no operation in power management, and 180 seconds have passed since the key was pressed
- When "Resume" is set for power management and more than 180 seconds have elapsed when resuming.
When pairing to another PC
If you want to connect the OPH-5000i that has been paired to another PC, follow the steps in "When using for the first time" again.Bluetooth HID key operation
(Operation method)
- Scan to enter the code.
Operation key Operation details SCAN key When connected: Reads the barcode and sends the barcode data. The scanned barcode will be displayed on the OPH-5000i screen.
When not connected (data collection disabled): Reads the barcode and sends the barcode data after connecting via Bluetooth.
When not connected (when data collection is enabled): Reads the barcode and saves the barcode data record to a file.Long press the SCAN key When connected: Disconnect the Bluetooth connection.
When not connected: Starts Bluetooth connection.
When not paired: Starts Bluetooth pairing.0 to 9 keys
.*keyWhen connected: Sends the entered key and displays it on the OPH-5000i screen. The characters you entered will be displayed.
When in numeric input mode, the entered digits will be sent. When entering characters, each time you press a key, input candidates are displayed and press the ENT key to confirm the input.
*The cursor disappears when entering characters.
*When entering characters, even if the characters are confirmed after 1 second, the characters will not be sent until the next input is made.
When not connected: Does not work.SHIFT key Switches the input mode (number input ⇔ character input). CLEAR key Return to the Main menu of the Standard app. ENT key Connecting: Send line break. The display on the OPH-5000i screen uses line breaks.
When displaying input candidates, confirm the input.
When not connected: Does not work.BS key Connecting: Send BS key. One character will be erased from the OPH-5000i screen display.
When not connected: Does not work.Q1 key Scrolls the OPH-5000i screen display up. When HID, send the ↑ key. Q2 key Scroll down the OPH-5000i screen display. When HID, send the ↑ key. If there is a data collection record, press the Q2 key at the bottom to display the data collection record history. F1 key Connecting: Sends the character code set for the function key. The initial value is ENTER.
When not connected: Does not work.Hold F1 key Connected: Long press has no effect. Acts as the F1 key and sends the character code set to the function key.
When not connected: Starts Bluetooth pairing.F2 key Displays Scanner mode settings. F3 key Assign reading settings and function key (F1).
Barcode transmission via Bluetooth SPP
WIMEbt is a Bluetooth virtual serial port This is a Windows application that outputs the received string to the active window. Although it is not possible to directly send a key code like HID, you can specify in WIME settings to send a key code when a control code (0x0 to 0x1F, 0x7F) is received. (CR⇒ENTER/BS⇒BackSpase etc.)
For first time use
When using Scanner mode for the first time, you need to perform Bluetooth pairing.- Configuring the interface to SPP on OPH-5000i
Set in the following order: F2 key ⇒ "Communication settings" ⇒ "Interface" ⇒ "SPP" ⇒ ENT key.
⇨
⇨
⇨
⇨
After setting, you will be returned to the communication setting screen, so press the CLR key twice to return to the Scanner mode screen.
⇨
⇨
- Creating a receiving port on the PC side
Create a receiving port using the steps in the FAQ. (This step is not necessary if paired.)
- Starting the communication application on the PC side
Start the communication app on your PC, specify the Bluetooth incoming port, and start receiving.
WIMEbt automatically determines the incoming Bluetooth port and starts receiving calls when the app starts.
- Display BD address
Display the barcode of the PC's BD address.
In WIMEbt, right-click the icon in the task tray at the bottom right and select bluetooth → address barcode to display the BD address barcode.
- Start Bluetooth pairing
Press the SCAN key and read the BD address barcode of the PC you want to connect to, the blue LED will blink and Bluetooth pairing will begin.
- PC side operations for Bluetooth pairing
Move the OPH-5000i and PC closer together, and the message ""OPH-5000i[######(serial number)]" is trying to pair this device. Do you want to allow it?" is displayed. Select Allow. (This screen may not be displayed and permission may be granted.)
- Bluetooth pairing complete
When Bluetooth pairing is completed and the connection via Bluetooth SPP is successful, OPH-5000i will make a connection success sound and turn off the blue LED.
- Preparing input on the PC side
For WIMEbt, start Notepad or similar program on your PC, disable the IME's Japanese conversion, and use alphabet input.
- Send barcode
When you press the SCAN key and read the barcode, the contents of the barcode will be received by the application on the PC side.
WIMEbt displays the contents of the barcode in Notepad. - Bluetooth disconnection
Press and hold the SCAN key for more than 3 seconds to disconnect the Bluetooth connection.
*The power will turn off if there is no operation for 120 seconds. The time until the power turns off can be changed using power management in the Scanner mode settings (F2 key).
*The default time for automatically disconnecting Bluetooth in Scanner mode is 180 seconds. Bluetooth will be disconnected in the following cases.- When 180 seconds have elapsed since the key was pressed while power is being supplied
- When 181 seconds or more is set for the power off time due to no operation in power management, and 180 seconds have passed since the key was pressed
- When "Resume" is set for power management and more than 180 seconds have elapsed when resuming.
How to use from the second time onwards (if Bluetooth pairing has been completed)
*If you initialize the settings of OPH-5000i, you will need to pair it again. After initializing the settings, if you want to pair with the same PC again, you need to select OPH-5000i from the list of other devices in PC Settings > Devices and "Delete Device."- Starting the communication application on the PC side
Start the communication app on your PC, specify the Bluetooth incoming port, and start receiving.
WIMEbt automatically determines the incoming Bluetooth port and starts receiving calls when the app starts.
- Start Bluetooth connection
Method 1: Long press the SCAN key to start Bluetooth connection, the blue LED will flash.
Method 2: After reading the barcode, it will start the Bluetooth connection and the blue LED will flash.
*If the data collection function is enabled, the connection will not start even if the barcode is read. - Bluetooth connection completed
When the Bluetooth connection is successful, OPH-5000i will make a connection success sound and turn off the blue LED.
- Preparing input on the PC side
For WIMEbt, start Notepad or similar program on your PC, disable the IME's Japanese conversion, and use alphabet input.
- Send barcode
When you press the SCAN key and read the barcode, the contents of the barcode will be received by the application on the PC side.
WIMEbt displays the contents of the barcode in Notepad. - Bluetooth disconnection
Press and hold the SCAN key for more than 3 seconds to disconnect the Bluetooth connection.
*The power will turn off if there is no operation for 120 seconds. The time until the power turns off can be changed using power management in the Scanner mode settings (F2 key).
*The default time for automatically disconnecting Bluetooth in Scanner mode is 180 seconds. Bluetooth will be disconnected in the following cases.
- When 180 seconds have elapsed since the key was pressed while power is being supplied
- When 181 seconds or more is set for the power off time due to no operation in power management, and 180 seconds have passed since the key was pressed
- When "Resume" is set for power management and more than 180 seconds have elapsed when resuming.
When pairing to another PC
If you want to connect the OPH-5000i that has been paired to another PC, follow the steps in "When using for the first time" again.Bluetooth SPP key operations
(Operation method)
- Scan to enter the code.
Operation key Operation details SCAN key When connected: Reads the barcode and sends the barcode data. The scanned barcode will be displayed on the OPH-5000i screen.
When not connected (data collection disabled): Reads the barcode and sends the barcode data after connecting via Bluetooth.
When not connected (when data collection is enabled): Reads the barcode and saves the barcode data record to a file.Long press the SCAN key When connected: Disconnect the Bluetooth connection.
When not connected: Starts Bluetooth connection.
When not paired: An error tone sounds.0 to 9 keys
.*keyWhen connected: Sends the entered key and displays it on the OPH-5000i screen. The characters you entered will be displayed.
When in numeric input mode, the entered digits will be sent. When entering characters, each time you press a key, input candidates are displayed and press the ENT key to confirm the input.
*The cursor disappears when entering characters.
*When entering characters, even if the characters are confirmed after 1 second, the characters will not be sent until the next input is made.
When not connected: Does not work.SHIFT key Switches the input mode (number input ⇔ character input). CLEAR key Return to the Main menu of the Standard app. ENT key Connecting: Send line break. The display on the OPH-5000i screen uses line breaks.
When displaying input candidates, confirm the input.
When not connected: Does not work.BS key Connecting: Send BS key. One character will be erased from the OPH-5000i screen display.
When not connected: Does not work.Q1 key Scrolls the OPH-5000i screen display up. When HID, send the ↑ key. Q2 key Scroll down the OPH-5000i screen display. When HID, send the ↑ key. If there is a data collection record, press the Q2 key at the bottom to display the data collection record history. F1 key Connecting: Sends the character code set for the function key. The initial value is ENTER.
When not connected: Does not work.Hold F1 key Connected: Long press has no effect. Acts as the F1 key and sends the character code set to the function key.
When not connected: Start Bluetooth pairing with OPH-5000i as slave.F2 key Displays Scanner mode settings. F3 key Assign reading settings and function key (F1).
